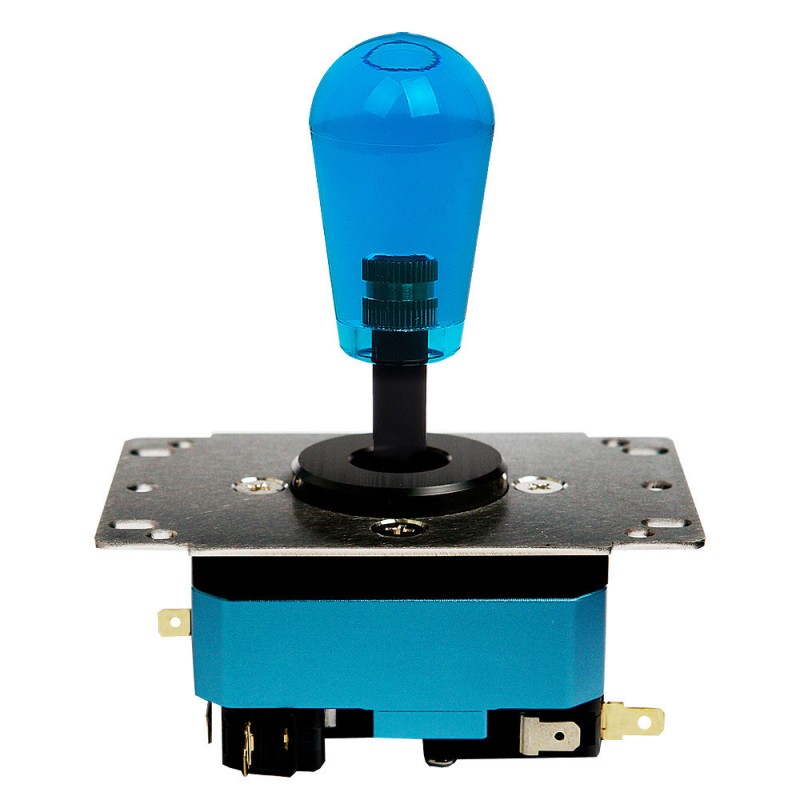

Sanjuks V6 II Lever (ver.2)

Condition New

This product is no longer in stock

Write a review

By buying this product you can collect up to 128 loyalty points. Your cart will total 128 points that can be converted into a voucher of 6,40 €.

Send to a friend

Send to a friend

Sanjuks V6 II Lever (ver.2)

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

120,00 €

Balltop :

Add 4.8mm to 5-pin Conversion Harness :

Extra Crown/Samducksa Tension Grommet :

Add to my wishlist

More info

Developed by the legendary modder SANJUKS and assembled with exceptional materials, the Sanjuks V6 II Lever (ver.2) stands out as one of the most precise Korean-style joysticks. Built for excellence and competitive play, this optimized version pushes the boundaries of responsiveness.

Key Features

Increased Execution Speed: The microswitch positioning has been subtly fine-tuned to reduce the overall throw distance of the lever, delivering an ultra-fast return to neutral and more instantaneous inputs.
Anodized Aluminum Chassis: The upper body now incorporates a premium aluminum alloy, paired with a precision-machined base (MCT process) and black anodized finish for absolute structural rigidity and lifelong durability.
Simplified Maintenance: The internal structure has been redesigned to easily separate the upper and lower housing components. Swapping the rubber tension grommet has never been faster.
Integrated Inspection Window: A handy slot beneath the housing lets you check at a glance the color (and therefore the hardness) of the tension grommet currently installed.

Technical Specifications

Origin: Made in South Korea.

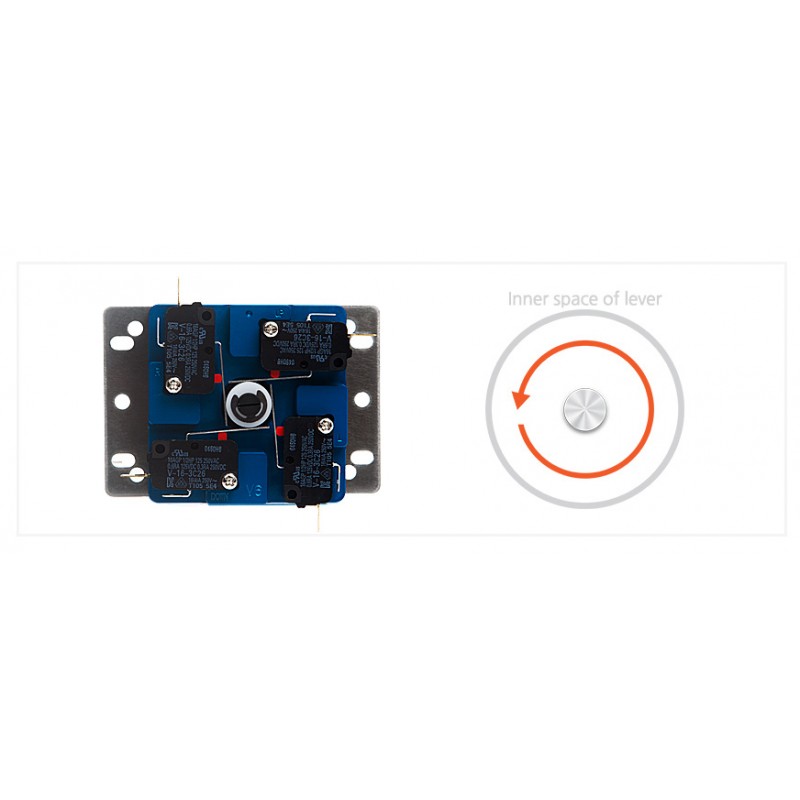

Gate Type: Circular inner gate, offering free and smooth circular movements with zero corner interference (the true Korean arcade standard).

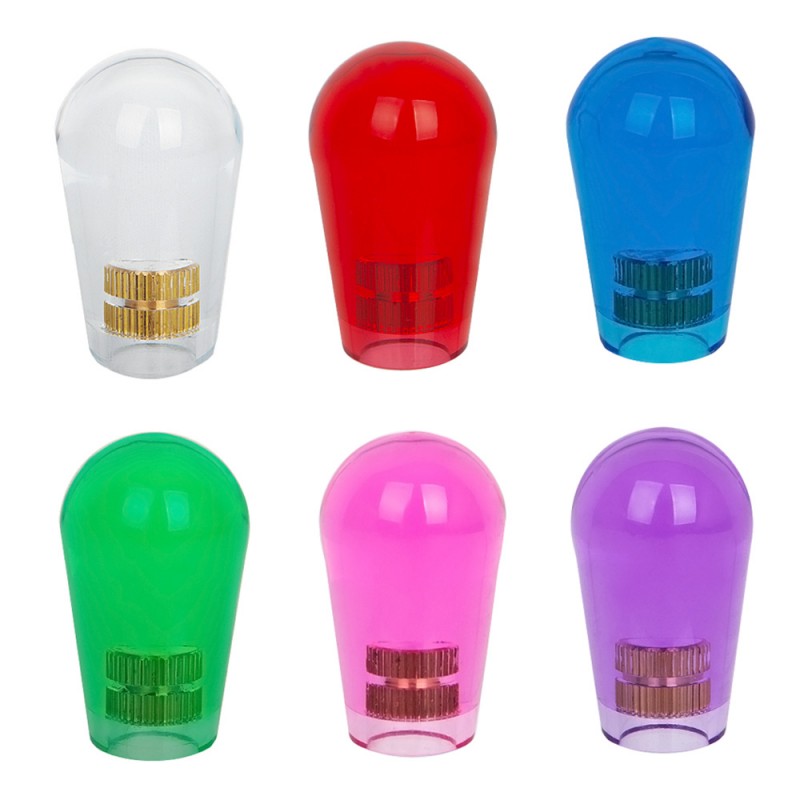

Handle Grip: Battop style.

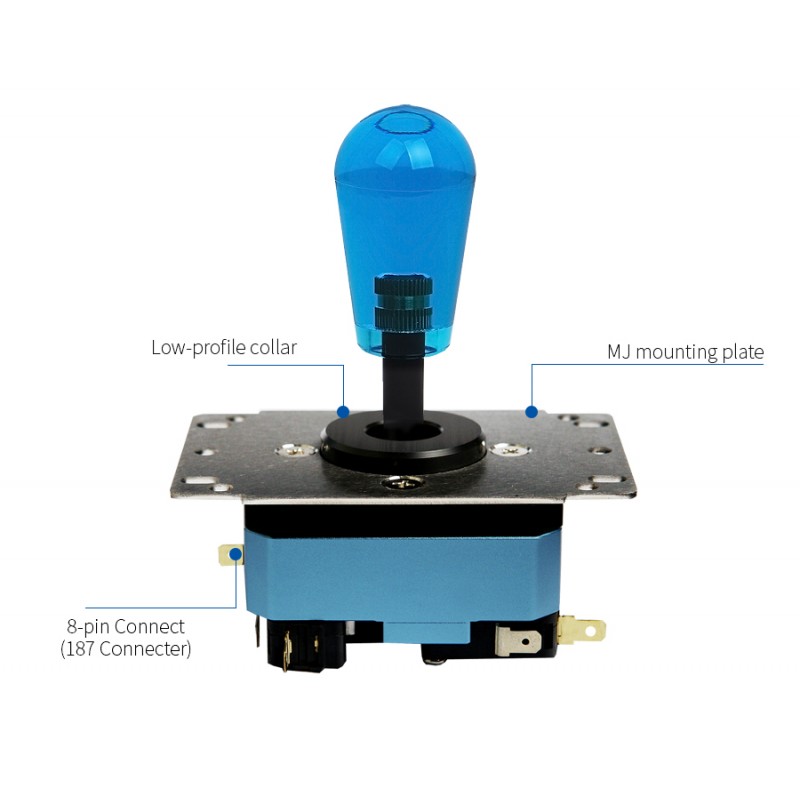

Collar Type: Low-profile collar.
Stock Tension: Light-to-medium tension, equipped by default with a Samducksa ST-30 rubber grommet.
Microswitches: 4 premium Omron V-16-3C26 switches.
Connection: 8-pin connector. (Note: A 5-pin to 8-pin adapter cable is required if your stick uses a standard 5-pin harness).

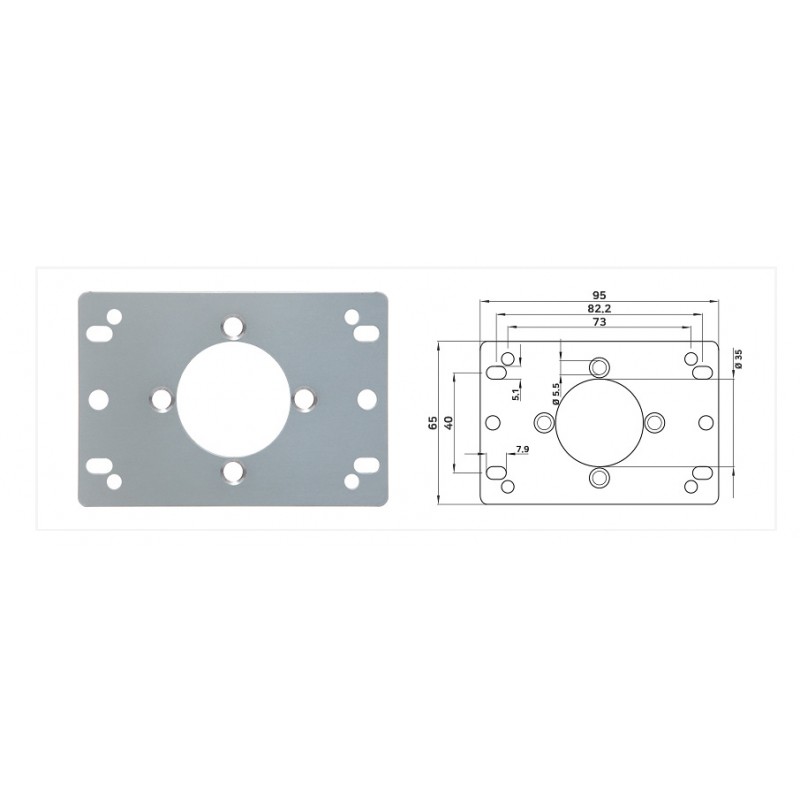

Mounting Plate: MJ Multi Mounting Plate (designed by IST Mall), compatible with the vast majority of commercial fightsticks featuring a mounting hole larger than 35mm.

Tested Compatibility

Thanks to its low-profile MJ plate, this lever fits easily into many popular arcade stick enclosures on the market:

IST Mall: MakeStick series (Prime, Pro, MDF).
Hori: Real Arcade Pro (RAP) V Hayabusa.
Qanba: Drone 2, Obsidian, Q1 (Note: Not compatible with the original first-generation Qanba Drone).
Mad Catz: TE2+.
Razer: Panthera (original generation).
Joytron / IO Lab: EX Revolution V2, IF Stick.
