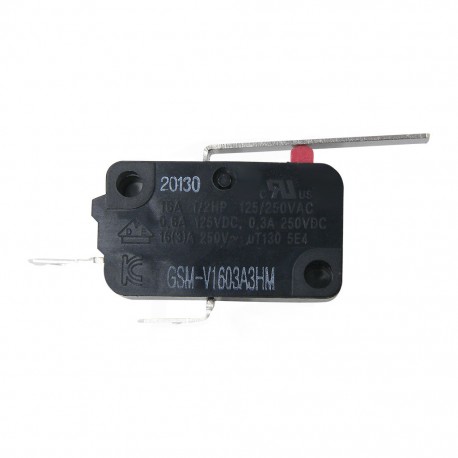

Gersung GSM-V1603A3HM microswitch

Condition New

Write a review

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of 0,10 €.

Send to a friend

Send to a friend

Gersung GSM-V1603A3HM microswitch

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

2,90 €

Quantity:

Add to my wishlist

More info

The Gersung GSM-V1603A3HM is a premium microswitch manufactured in South Korea. It is an iconic components in the fighting game community for equipping or modding Korean-style joysticks.

Design & Dimensions

Actuator Type: Long and wide hinge lever (typically 5.10 mm wide). This wider tab provides an optimized and more stable contact surface with the joystick's actuator.
Terminal Type: 4.8 mm quick-disconnect terminals (standard .187" size), common on Korean and American arcade hardware.

Electrical Specs & Tension

Actuation Force / Tension: It offers a firm yet balanced resistance. It is slightly softer to actuate than the standard GSM-V1623A3 version. This delivers a fast return to neutral and excellent precision without causing hand fatigue during long gaming sessions.

Usage & Compatibility

This microswitch is specifically engineered for competitive play, particularly for 3D fighting games like Tekken.

Preferred Joysticks:
- It is the core component of the Crown / Samducksa CWL-309-MJ-NEW-Helpme joystick. On this model, it is installed on 3 directions: Down, Left, and Right (paired with a softer GSM-V0303A3HM on Up to prevent accidental jumps).
- It is also featured in the renowned Knee Lever Neo by IST Mall.
Installation: Perfect for replacing worn-out stock switches or modifying the feel of most Korean levers (Samducksa, Taeyoung, Myoungshin).
