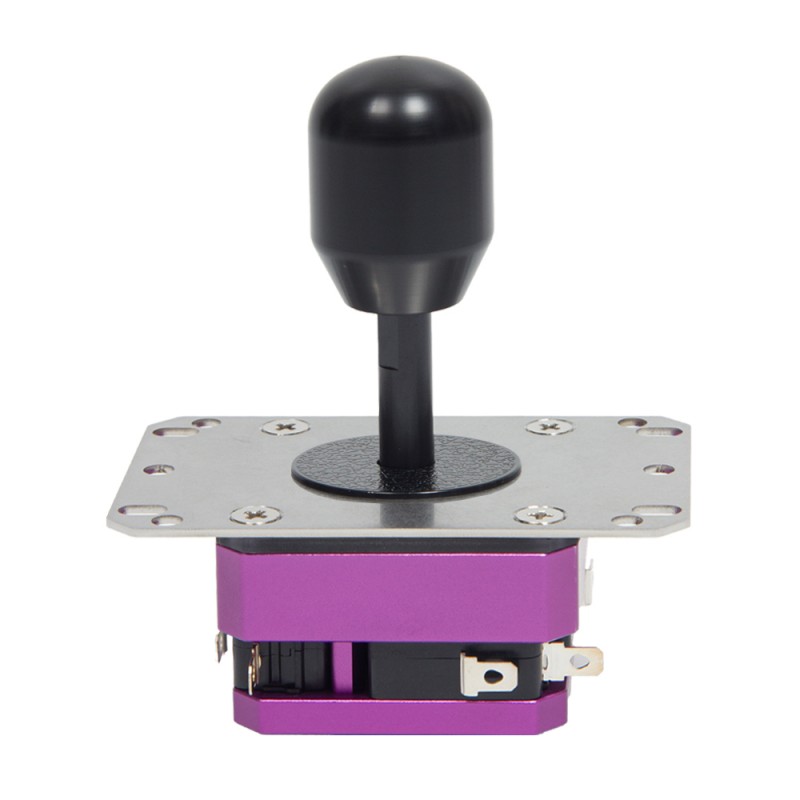

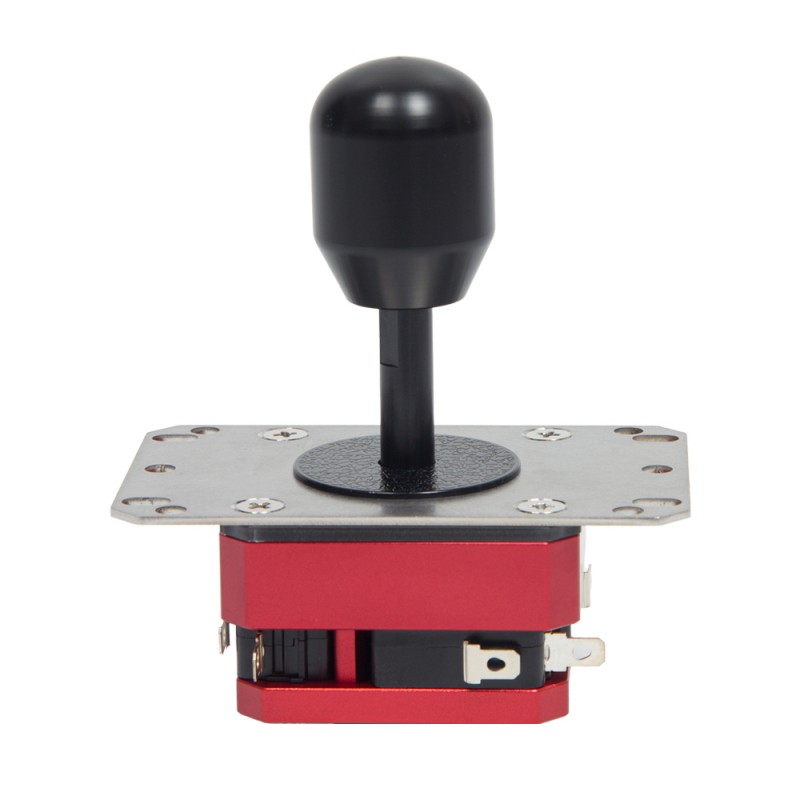

Sanjuks TYPE-R Lever

Sanjuks Type-R.

Sanjuks Type-R joystick is one of the most precise model in the world.

Sanjuks has been developing his own original joystick for a long time

and the Type-R is the latest model unveiled in december 2024.

The upper part of the joystick body is made of polyacetal and

the lower part is made of MCT precision machining black anodizing process.

Changes from Sanjuks Type-R joystick:

1. Based on the Sanjuks V3 lever, the spring has been removed and replaced with Samducksa 15 tension grommet.

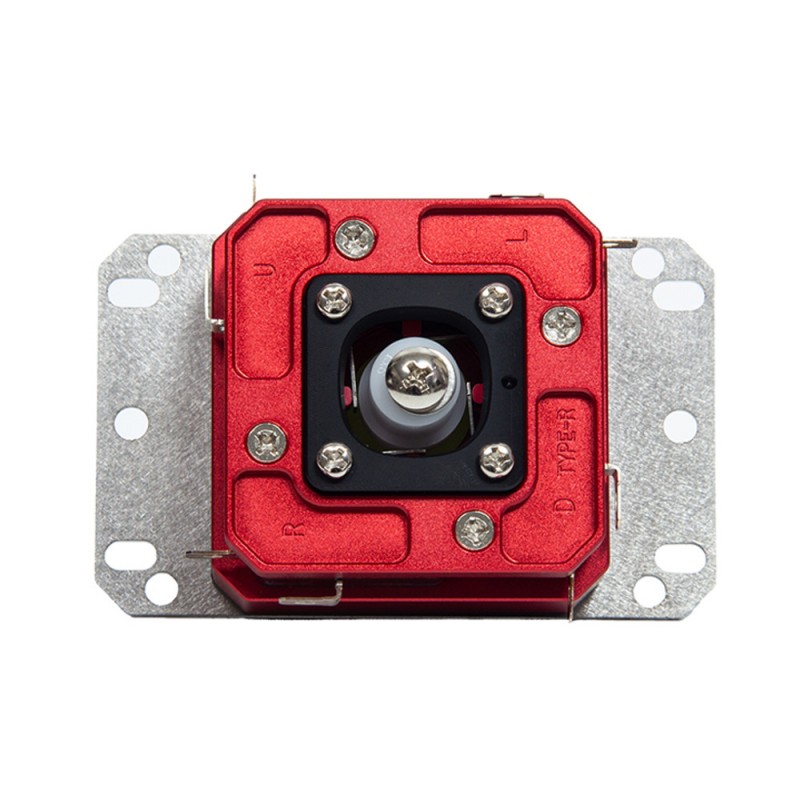

2. The lever housing and gate are made of aluminium alloy AL6061 with anodized surface treatment.

3. A black Acetal Nobi bullet style handle machined with CNC precision.

4. The shaft features hard-anodized aluminium treatment.

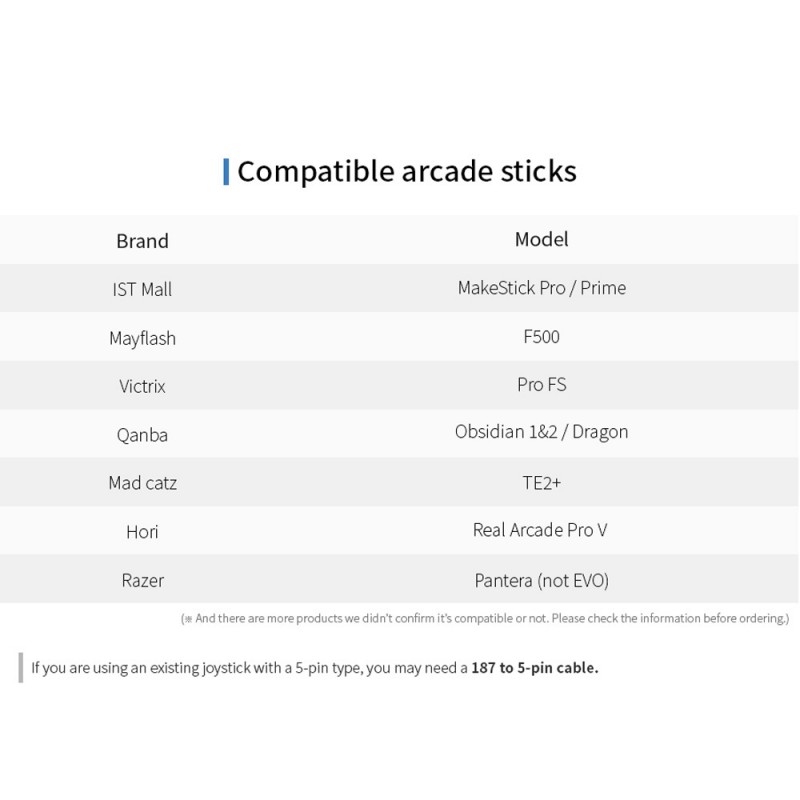

Compatible arcade sticks:

- IST Mall: MakeStick Pro / Prime

- Mayflash: F500

- Victrix: Pro FS

- Qanba: Obsidian 1&2 / Dragon

- Mad catz: TE2+

- Hori: Real Arcade Pro V

- Razer: Pantera (not EVO)

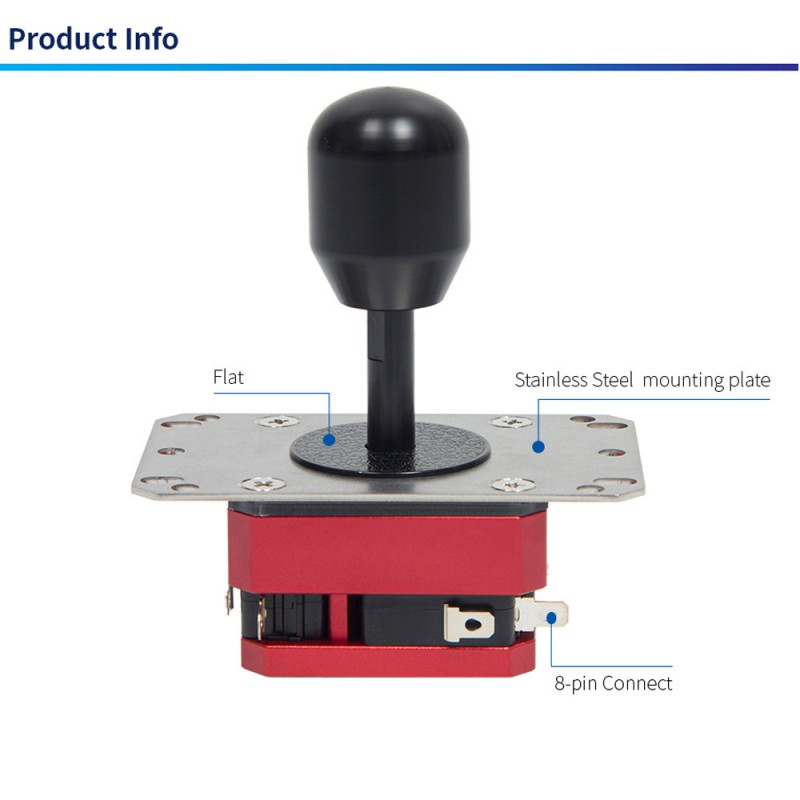

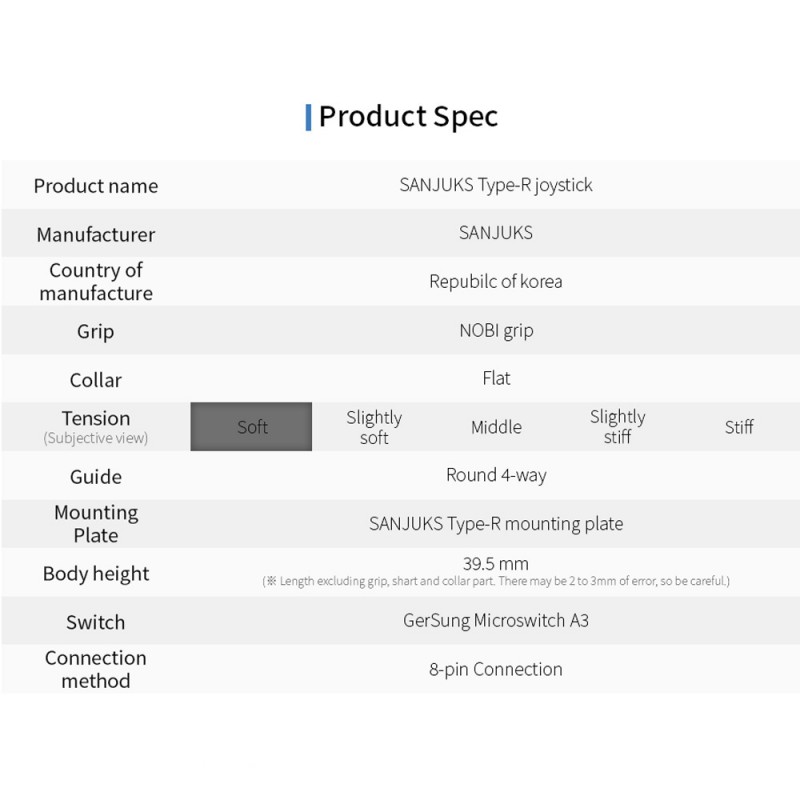

Features:

- Made in Republic of Korea

- Grip: Nobi grip

- Collar: Flat

- Tension: Soft

- Guide: Round 4-Way

- Mounting Plate: Sanjuks Type-R mounting plate

- Body height: 39.5mm

- Switch: GerSung Microswitch A3

- Connection method: 8-pin Connection

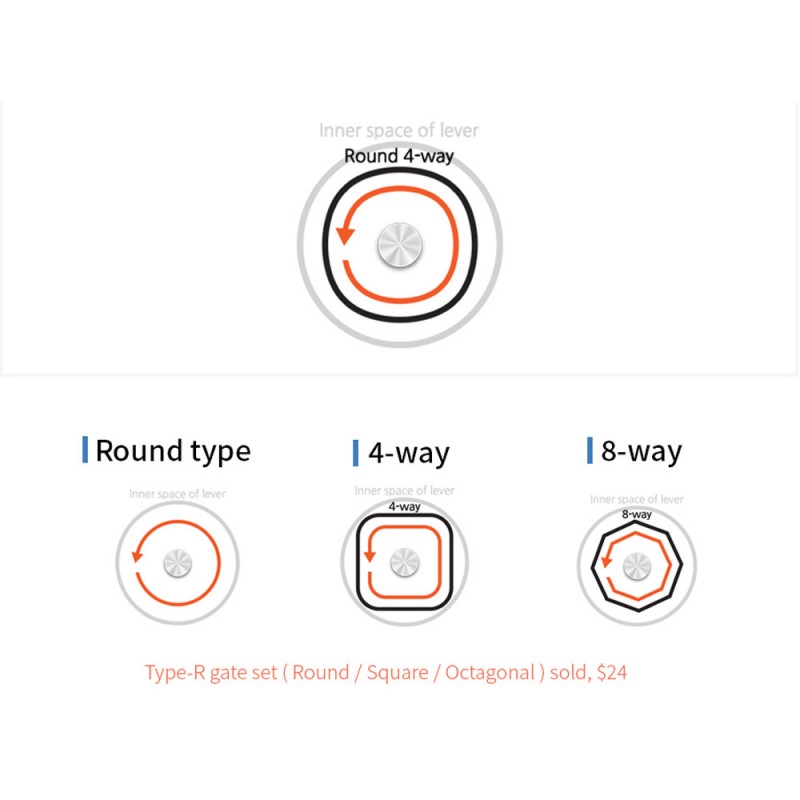

Round 4-Way:

The round 4-way restrictor plate is separately sold product of infiltration lever.

This plate is a combination of round type and 4-way operation.

It has advantages of both 4-way operation's accurate diagonal control

and round type's smooth 360-degree control.

It's more like to round type than 4-way operation and only compatible with infiltration lever.

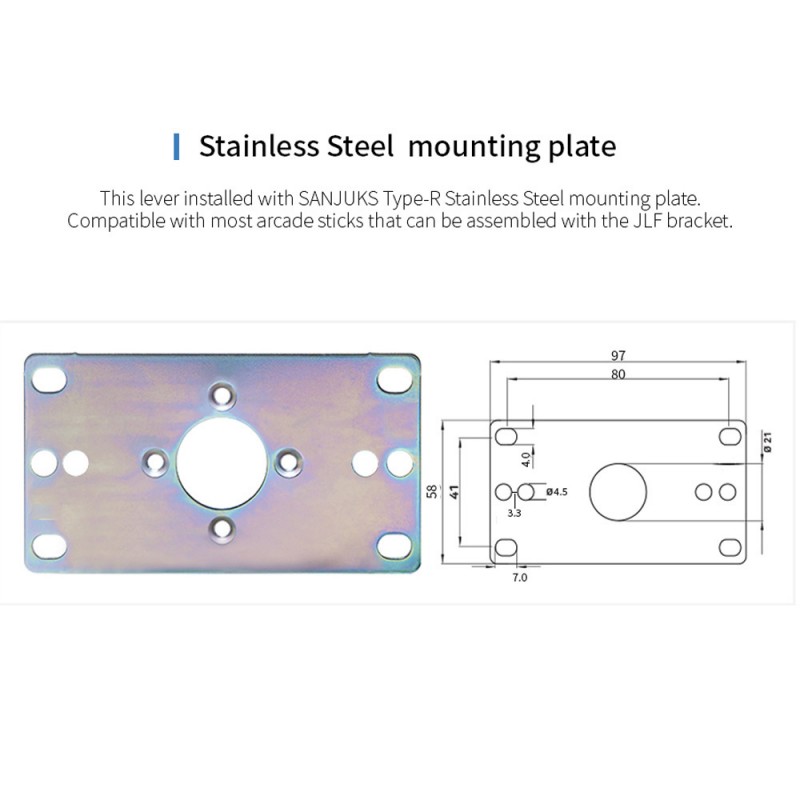

Stainless Steel Mounting plate:

This lever installed with Sanjuks Type-R stainless stell mounting plate.

Compatible with most arcade stick that can be assembled with the JLF bracket.
